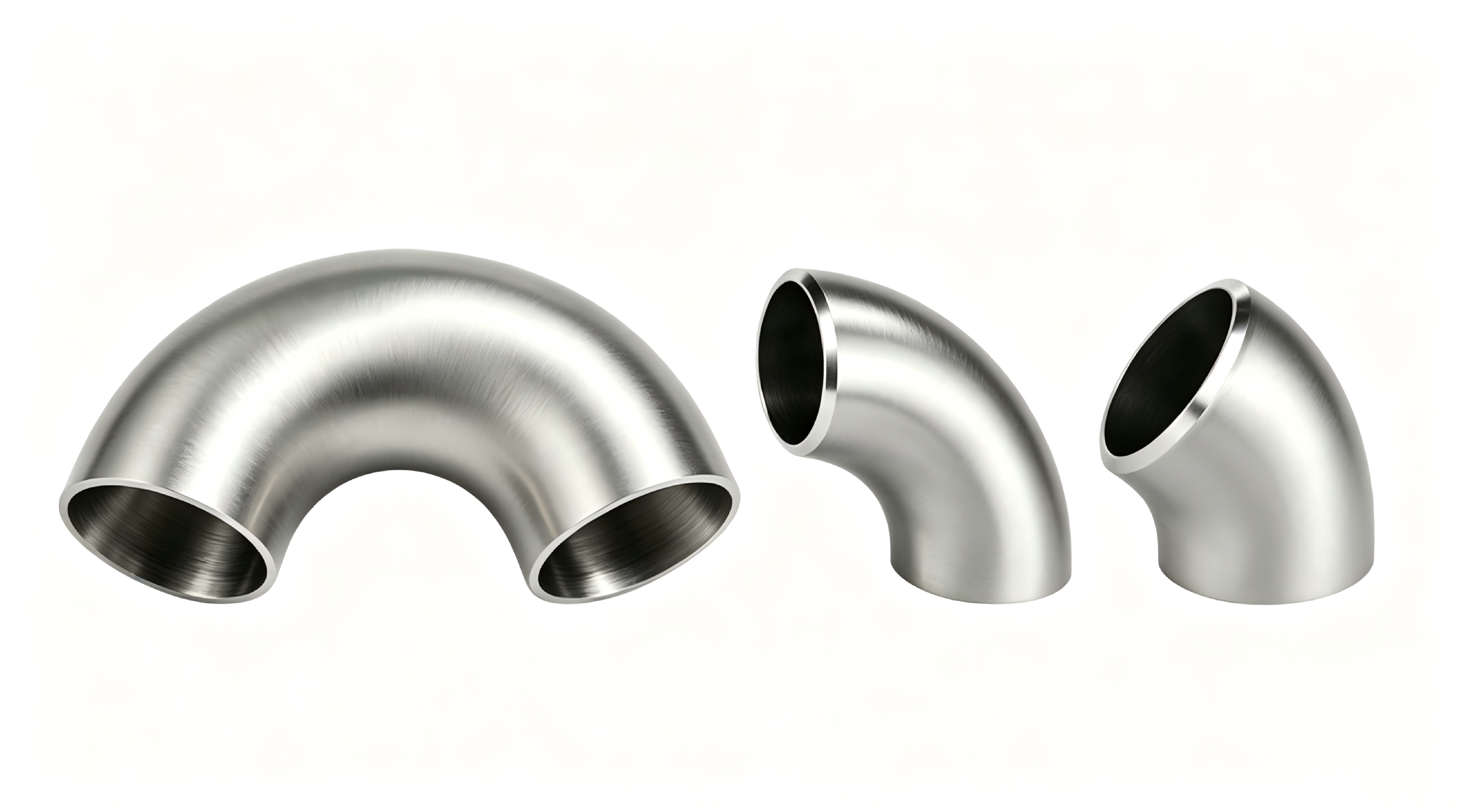

Types of Stainless Steel Elbows
90° Elbow
The most commonly used elbow for changing pipe direction by 90°. Suitable for general process and industrial piping.
45° Elbow
Provides a smoother directional change with lower flow disturbance, commonly used where gradual changes in direction are required.
180° Return Elbow
Used to reverse the flow direction by 180°, commonly found in heat exchangers, heating systems and specialized piping.
Long Radius Elbow
Typically has a radius of 1.5D, providing smoother flow and lower pressure loss. Widely used in process, chemical and petrochemical piping.
Short Radius Elbow
Typically has a radius of 1D, offering a more compact installation where space is limited.
Common Stainless Steel Grades
304 / 304L – General industrial, food and water applications
316 / 316L – Chemical, marine and corrosive environments
321 – High-temperature piping systems
310S – High-temperature and oxidation-resistant applications
2205 Duplex – High strength and chloride resistance
2507 Super Duplex – Severe corrosion and offshore applications
Standards
ASME B16.9 | ASTM A403 | EN 10253 | DIN | JIS | GB/T
Applications
Oil & Gas | Chemical & Petrochemical | Food & Beverage | Pharmaceutical | Water Treatment | Marine & Offshore | Power Generation | Industrial Piping
Specifications
| Item | Available Options |
|---|
| Type | 45° / 90° / 180° / Long Radius / Short Radius |
| Material | 304/304L, 316/316L, 321, 310S, 2205, 2507, etc. |
| Size | Customized according to requirements |
| Wall Thickness | SCH 5S, 10S, 40S, 80S, 160 & Custom |
| Connection | Butt Weld |
| Surface | Pickled, Polished, Bright or Custom |
| Inspection | Dimensional Inspection, PMI, MTC, EN 10204 3.1, Third-Party Inspection |
Baojing Steel provides stainless steel elbows in standard and customized configurations, supporting reliable and durable piping connections for demanding industrial applications.
